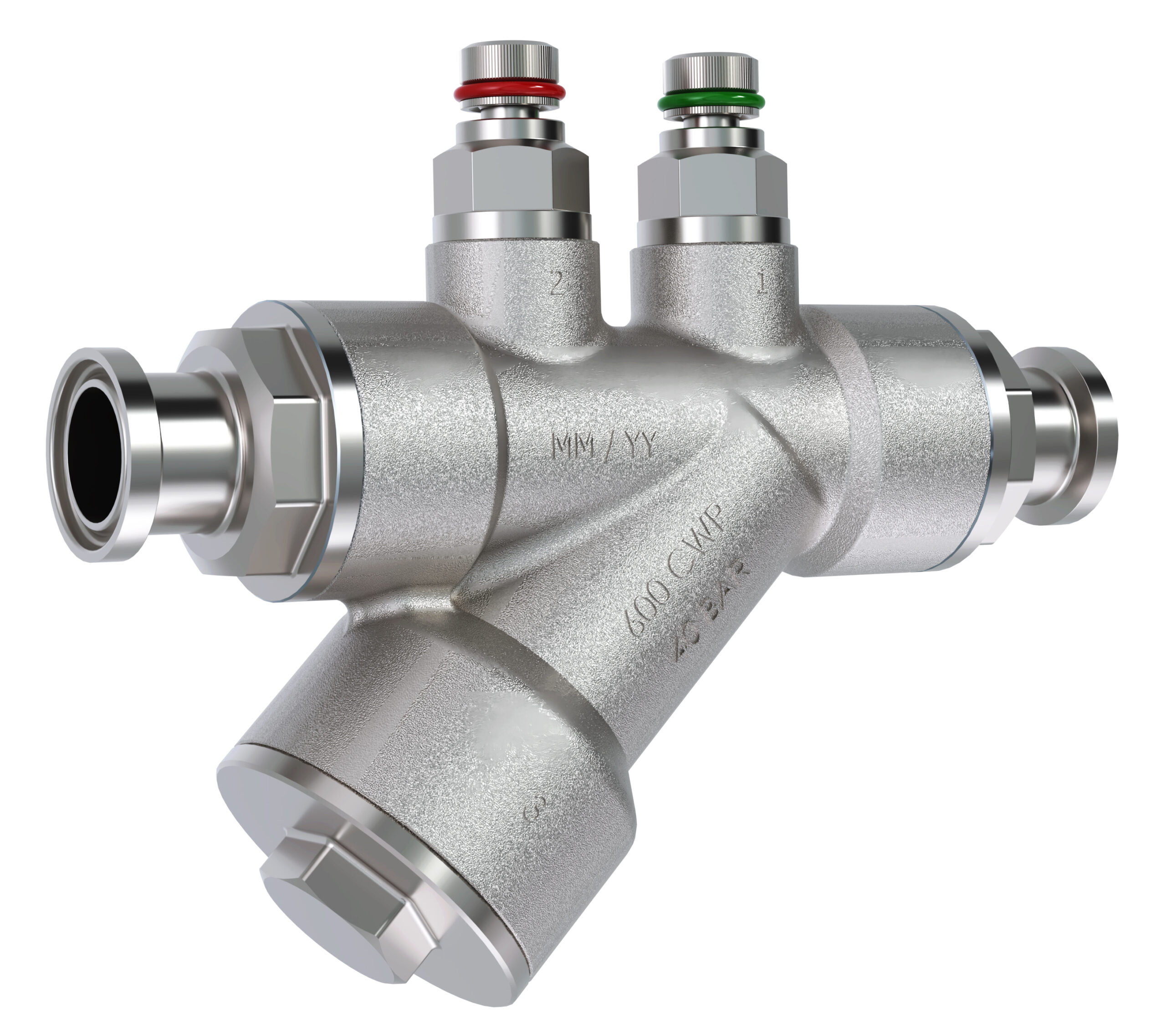

The UltraMatic Stainless Steel is a precision-engineered automatic flow control valve designed for demanding environments like data centers. Available in sizes from ½” to 2″, it offers versatility,
durability, and consistent flow performance across a 2–45 PSID range.
Advantages:
• 316 stainless steel body for corrosion resistance and durability

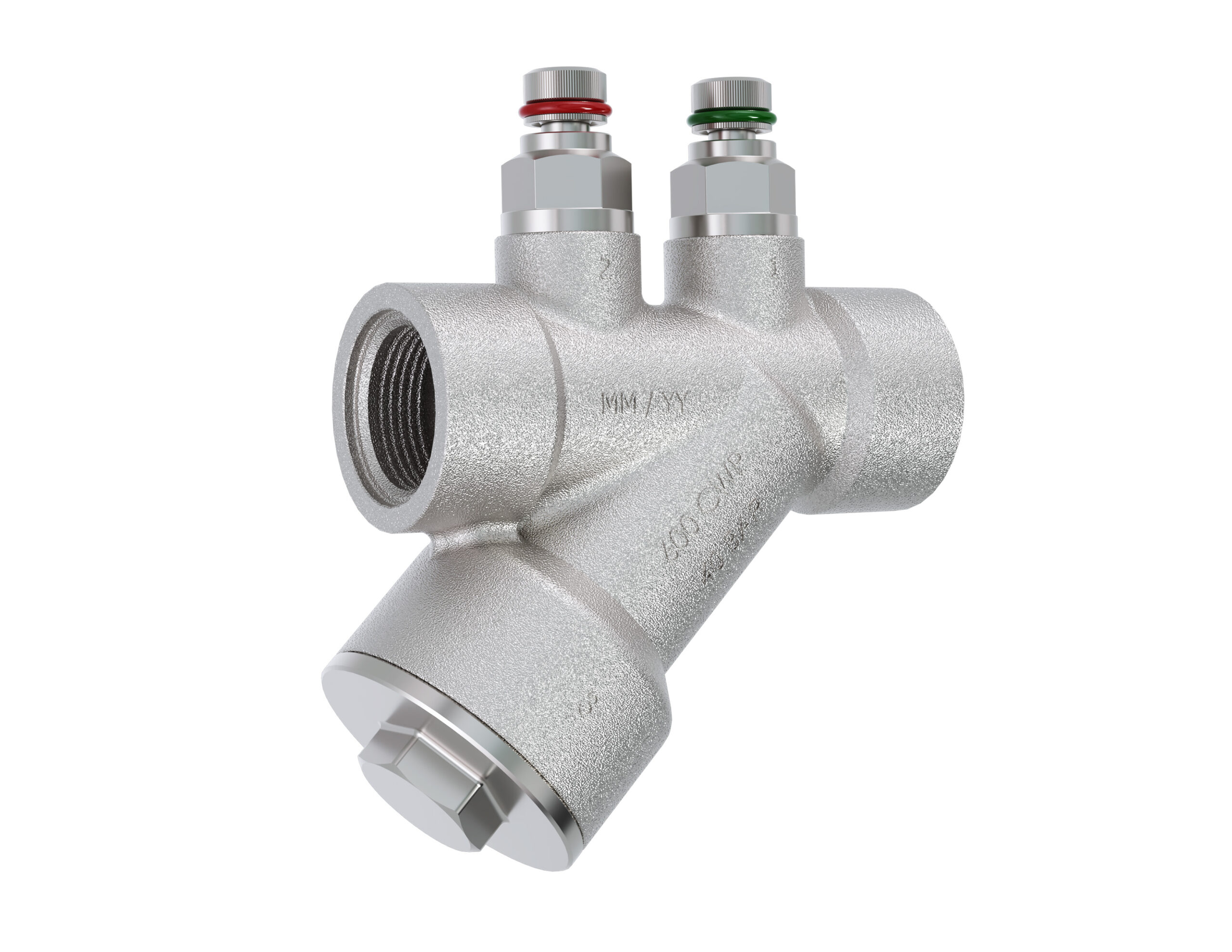

• Multiple connection options: female BSPP and Tri-Clamp
• Ideal vertical markets: Data Centers and other mission-critical applications
Automatic Flow Control Valve
600 WOG, 325ºF
Connection options: Tri-Clamp and BSPP
Blowout-proof shaft
Double shaft seals

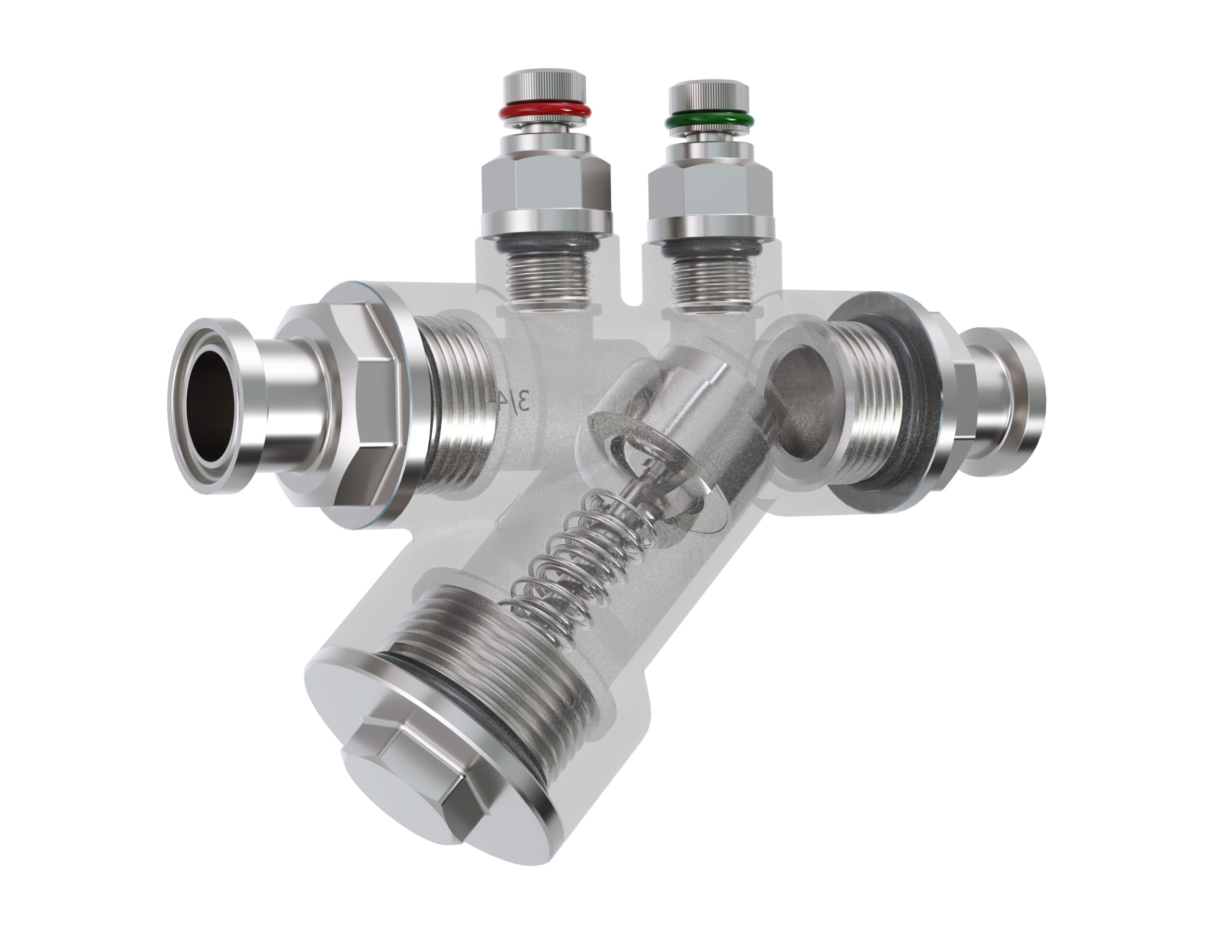

Removable, non-clogging flow cartridge
Accuracy ± 5
Body & Fixed End: Stainless Steel – 316L
Fixed End: Stainless Steel – 316L
Fixed End Seals: FKM O-rings
Cap Seal: FKM O-Ring
Flow Cartridge: Stainless Steel – 316L
Cartridge Seal: FKM
| Size | PSID Range | GPM |
|---|---|---|
|
½”, ¾” LO |
2 – 45 |
0.33, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0 |
|
¾”, 1″ LO, 1¼”LO |
2 – 45 |
0.33, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 9.0, 10.5 |
|
1¼” , 1½” |
2 – 45 |
8.0, 12.0, 15.0, 22.0 |
|
2″ |
2 – 45 |
25.0, 50.0, 70.0, 75.0 |
