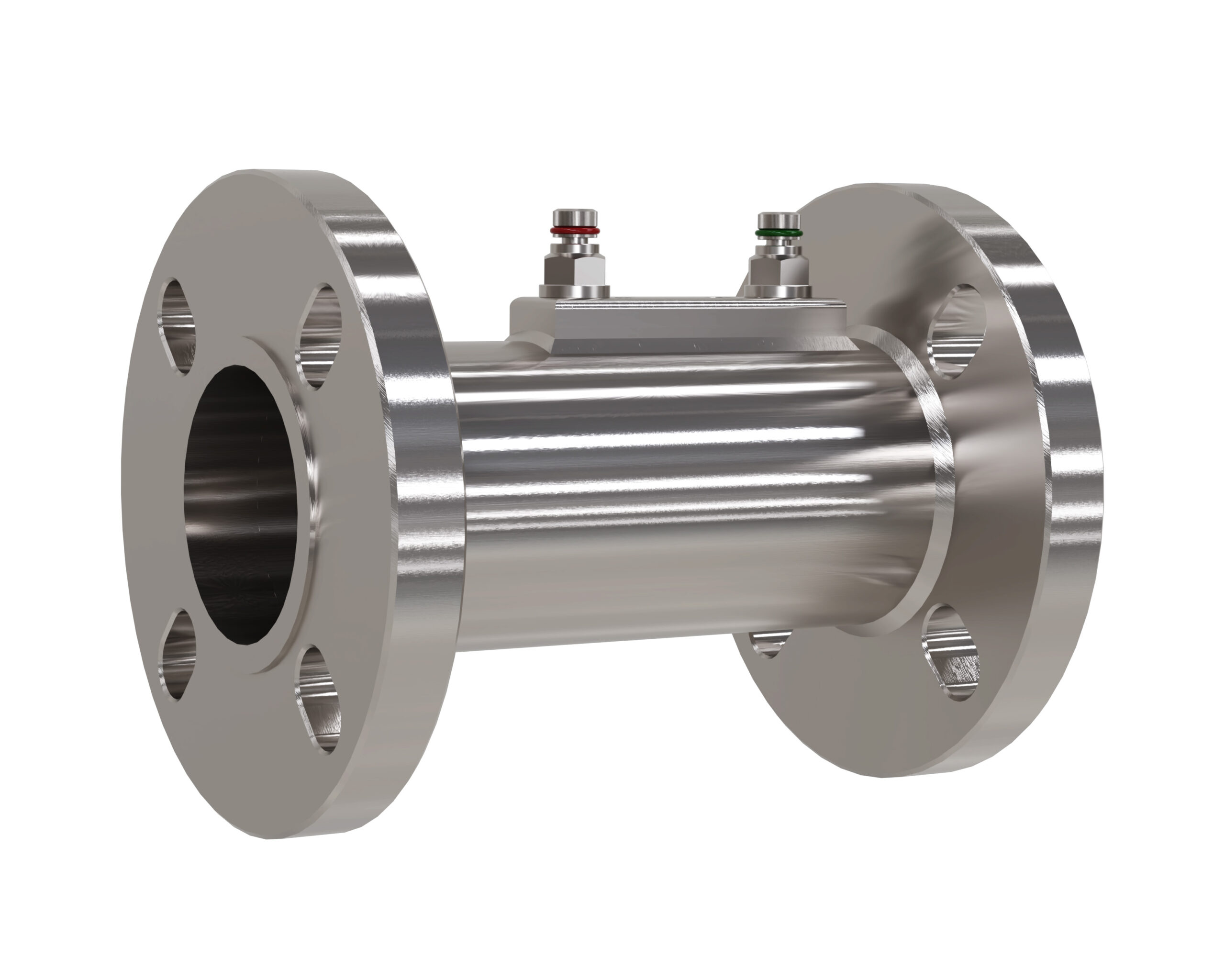

The UltraMatic Stainless Steel is a precision-engineered automatic flow control valve designed for demanding environments like data centers. Available in sizes from 2″ to 10″, it offers versatility,
durability, and consistent flow performance across a 2–45 PSID range.
Advantages:
• 316 stainless steel body for corrosion resistance and durability
• Ensures constant flow rate
• Ideal vertical markets: Data Centers and other mission-critical applications
Automatic Flow Control Valve
175 PSIG, 250ºF
ANSI Class Flange Connections
Body tag

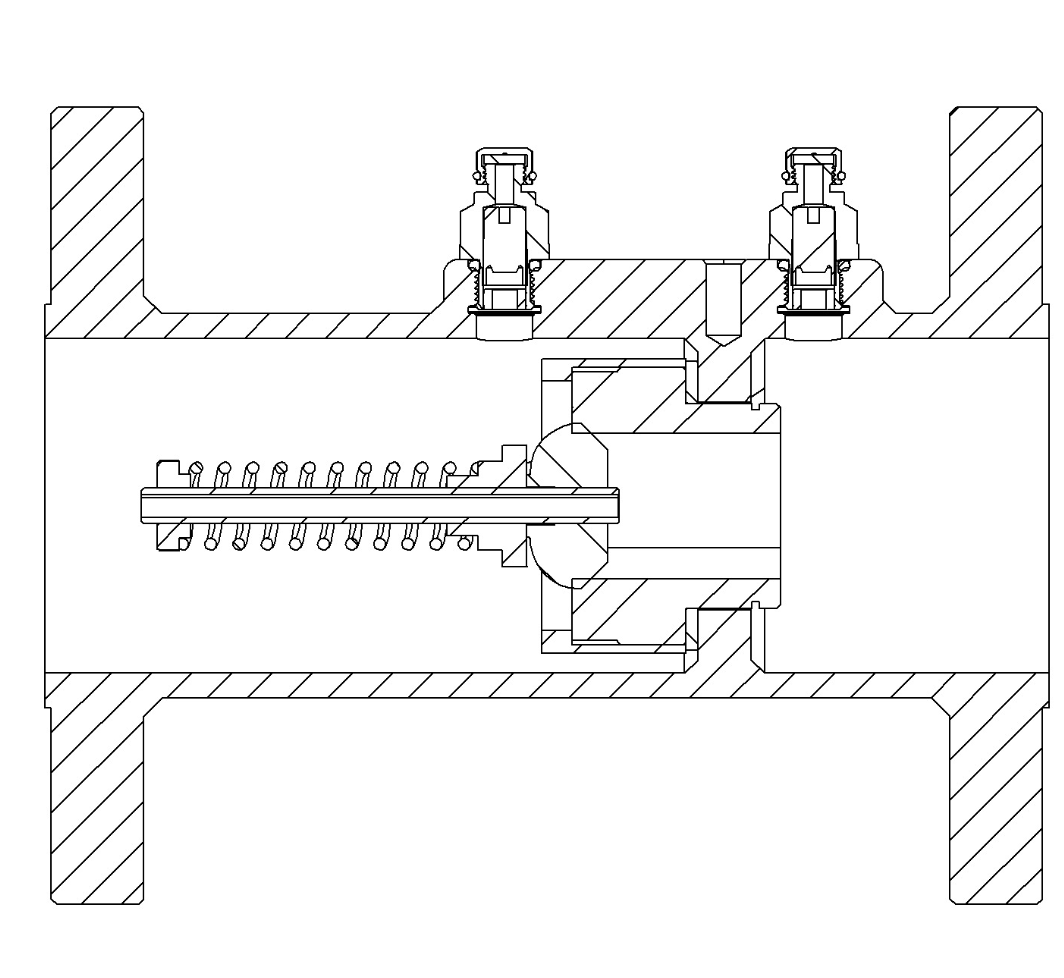

Removable, non-clogging flow cartridge
Accuracy ±5%
Body: Stainless Steel – 316L
Flow Cartridge: Stainless Steel – 316L
Cartridge Seal: EPDM
2″ thru 10″
| Size | Flow Rate |
|---|---|
|
2″ |
25.00 GPM thru 75.00 GPM |
|
4″ |
75.00 GPM thru 720.00 GPM |
|
6″ |
75.00 GPM thru 960.00 GPM |
|
8″ |
125.00 GPM thru 1680.00 GPM |
|
10″ |
480.00 GPM thru 2640.00 GPM |
